HGG Hardware: friendship0
First ever prototype of the HGG friendship0 backplane board.
HGG prototypes are manufactured with kind support of pcb-pool. One really cool feature they have is automatic photo updates during the manufacturing process of the board so you can watch your board step by step.
Meta
| Size | 80 x 100mm (Half Euro) |
|---|---|
| Material | 1.5mm, 35um Cu, FR4 |
| Trace width | 5mil (0.125mm) |
PCB in the making
friendship0
| Step | Top | Bottom |
|---|---|---|
| Drilling |  |  |
| Exposure |  |  |
| Tin stripping |  |  |
| UV cure (note: no solder resist ordered) |  |  |
friendship0 - breakout0
| Step | Top | Bottom |
|---|---|---|
| Drilling |  |  |

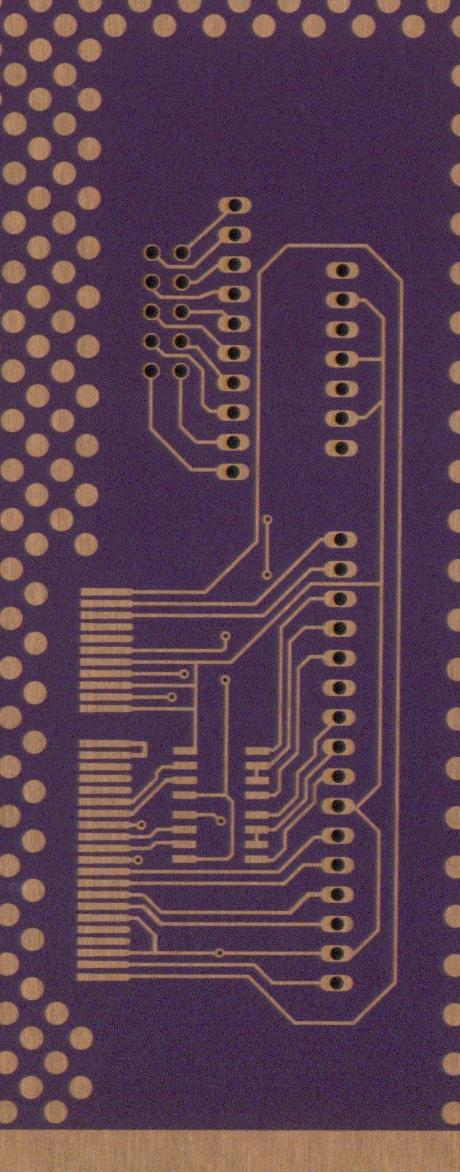

| Exposure |  |
|
| Tin stripping | ||
| UV cure (note: no solder resist ordered) |
